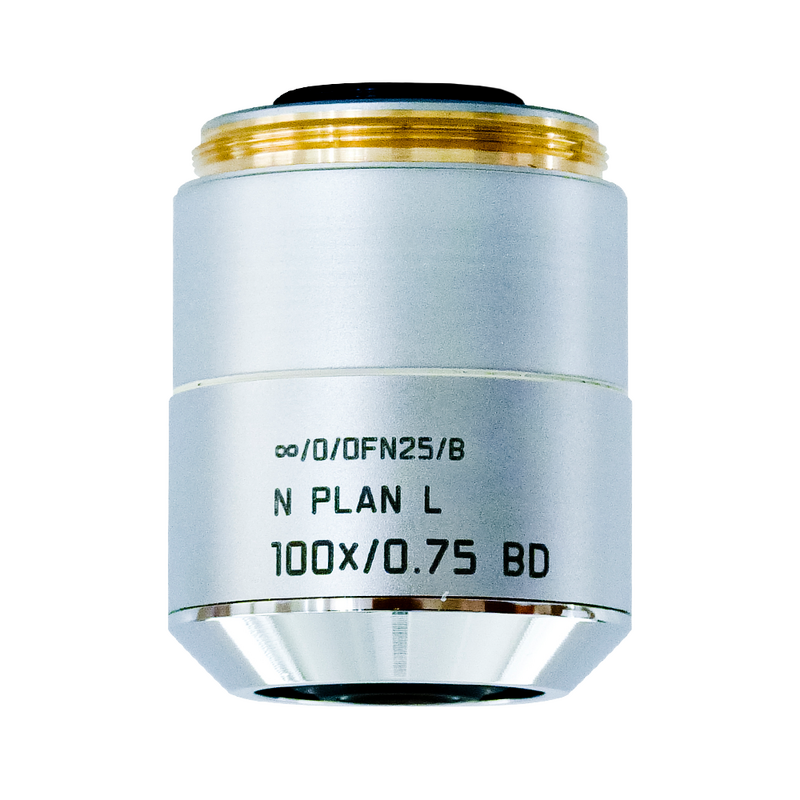

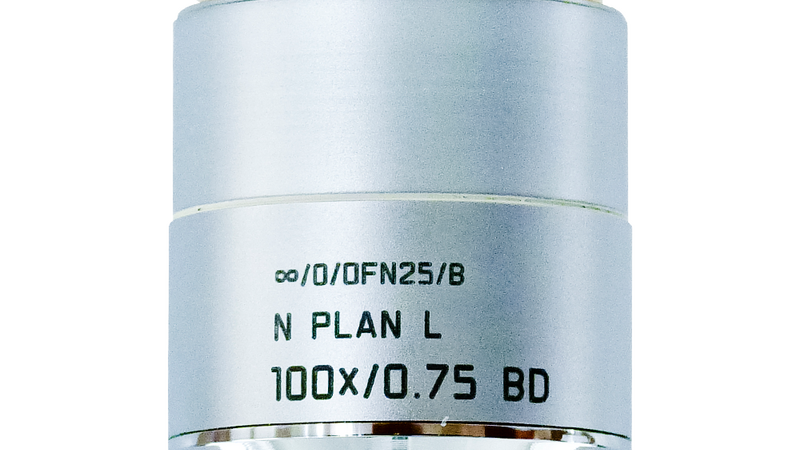

Microscope Objective N PLAN L 100x/0,75 BD
Product No. 11566048
Objective N PLAN L 100x/0,75 BD has a magnification of 100X and a numerical aperture of 0.75mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 3.5mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
技术规格
| 商品号 | 11566048 |
|---|---|
| 校正环 (CORR) | - |
| 盖玻片 | 不使用 |
| 出射光瞳位置/微分干涉棱镜 | B |
| Field Number (FN) | 22 |
| 自由工作距离（WD，mm） | 03. Mai |
| 浸渍 | 干 |
| 可变光阑 | 不使用 |
| 放大倍数 | 100⨉ |
| 相衬方法 | TL-BF, TL-DIC, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| 数值孔径 | 0.75 |
| 物镜螺纹 | M32 |
| 物镜类型 | N PLAN |
| 弹簧式 | 否 |
| 适用于 AFC（自适应焦点控制） | - |
| 技术 | BD, IL |

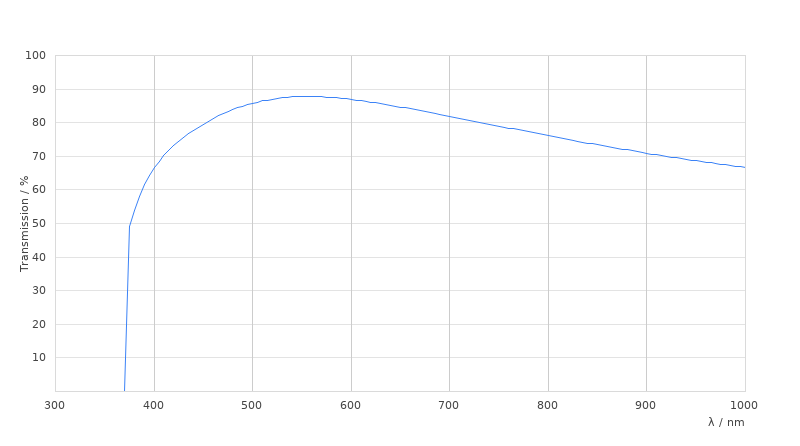

| 透射 | - |
