Microscope Objective HC PL APO 40x/1,1 W CORR CS2
Product No. 11506425
Objective HC PL APO 40x/1,1 W CORR CS2 has a magnification of 40X and a numerical aperture of 1.1mm. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 0.62mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
技术规格
| 商品号 | 11506425 |
|---|---|
| 校正环 (CORR) | CORR |
| 盖玻片 | 使用 |
| 出射光瞳位置/微分干涉棱镜 | D |
| Field Number (FN) | 25 |
| 自由工作距离（WD，mm） | 0.62 |
| 浸渍 | 水 |
| 可变光阑 | 不使用 |
| 放大倍数 | 40⨉ |
| 相衬方法 | TL-BF, TL-DIC, FLUO |
| 数值孔径 | 1.1 |
| 物镜螺纹 | M25 |
| 物镜类型 | PLAN APO |
| 弹簧式 | 是 |
| 适用于 AFC（自适应焦点控制） | 适用于 AFC |
| 技术 | CS2, Waterdispenser |

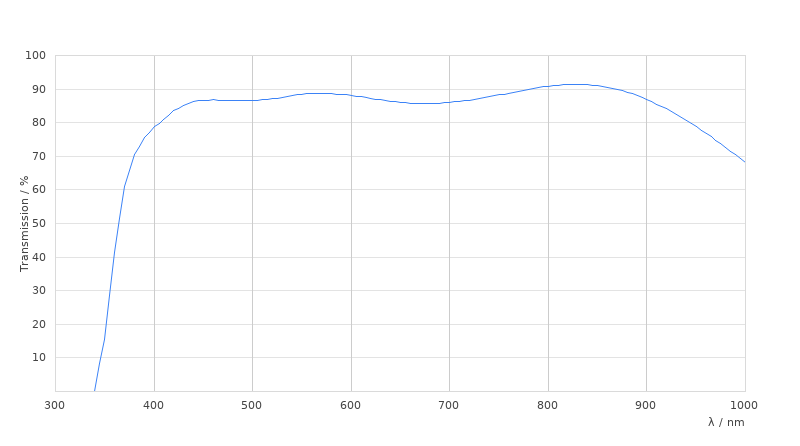

| 透射 | UV (365nm) |
