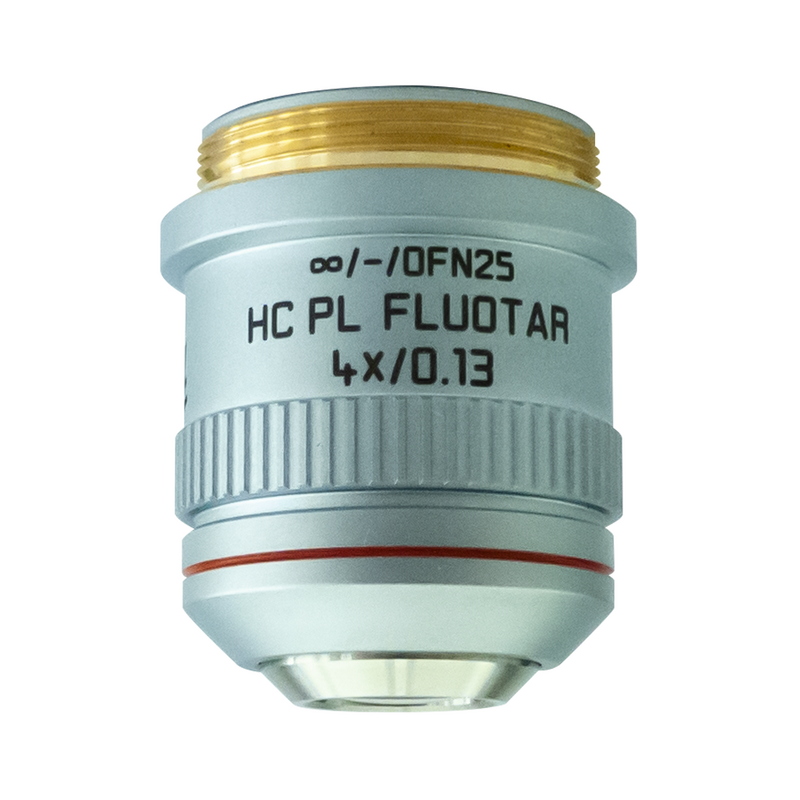

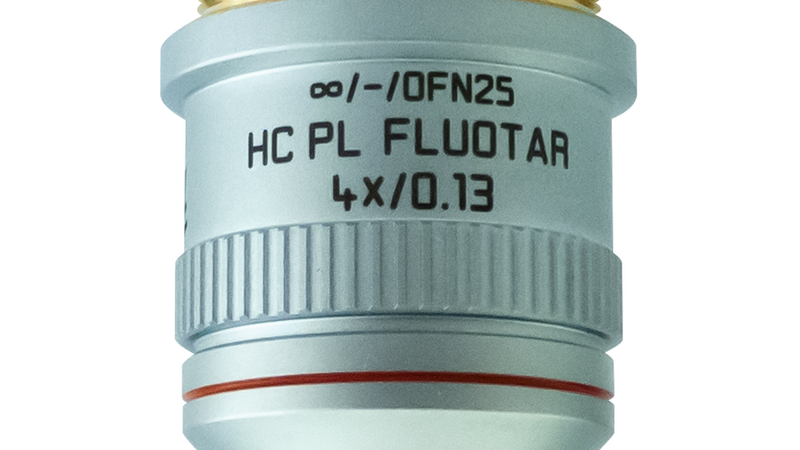

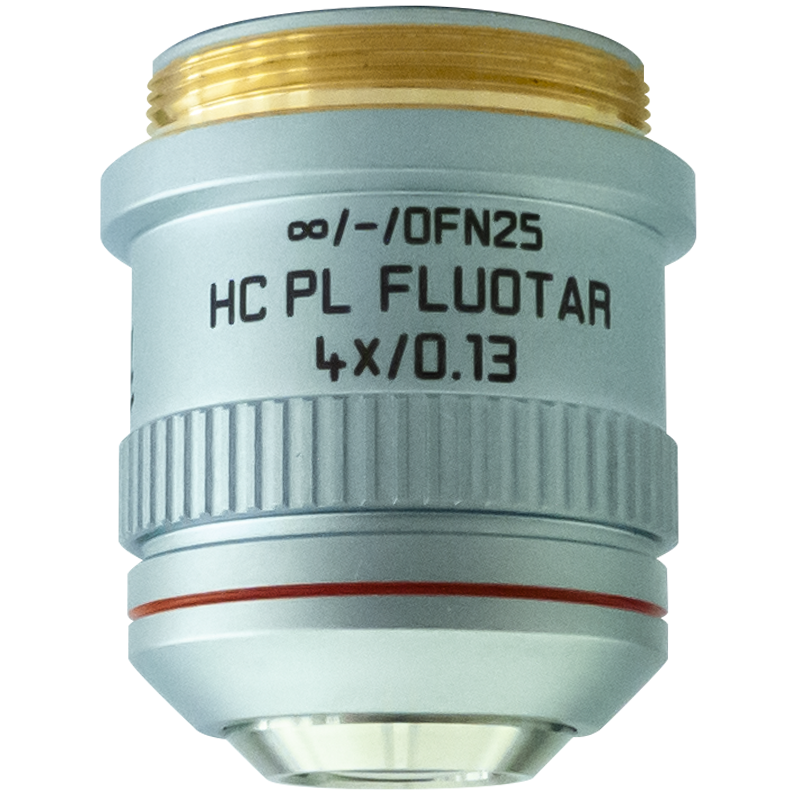

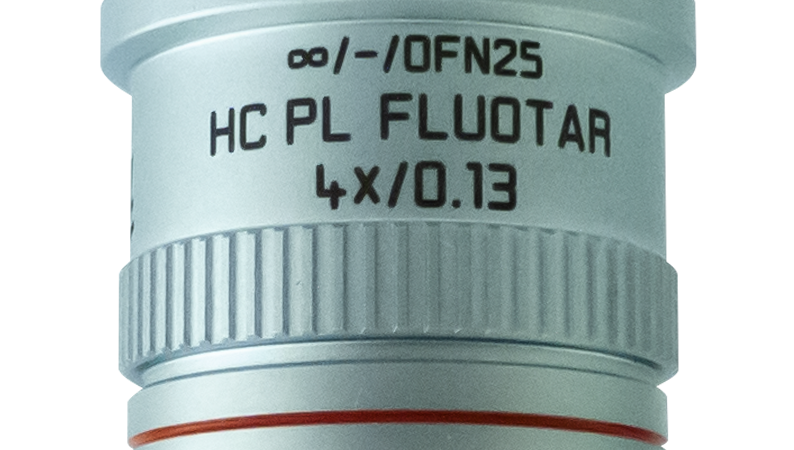

Microscope Objective HC PL FLUOTAR 4x/0,13
Product No. 11506412
Objective HC PL FLUOTAR 4x/0,13 has a magnification of 4X and a numerical aperture of 0.13mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
技术规格
| 商品号 | 11506412 |
|---|---|
| 校正环 (CORR) | - |
| 盖玻片 | 带和不带 |
| 出射光瞳位置/微分干涉棱镜 | - |
| Field Number (FN) | 25 |
| 自由工作距离（WD，mm） | 17 |
| 浸渍 | 干 |
| 可变光阑 | 不使用 |
| 放大倍数 | 4⨉ |
| 相衬方法 | TL-BF, TL-P, TL-DF, FLUO |
| 数值孔径 | 0.13 |
| 物镜螺纹 | M25 |
| 物镜类型 | PL FLUOTAR |
| 弹簧式 | 否 |
| 适用于 AFC（自适应焦点控制） | - |
| 技术 | LightSheetIllumination |

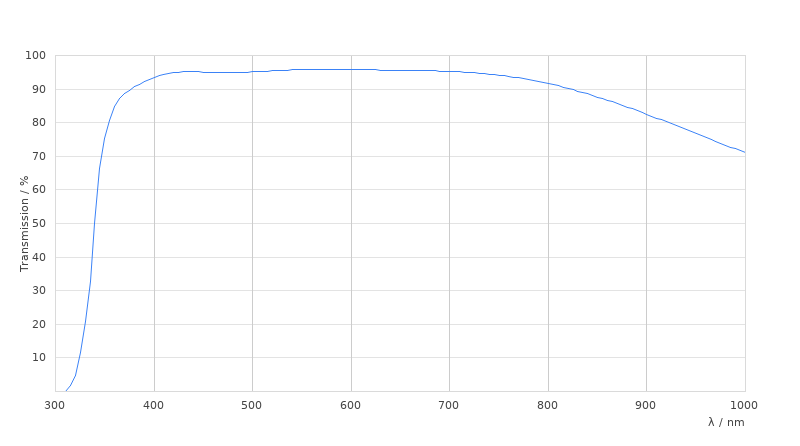

| 透射 | UV (340nm) |
