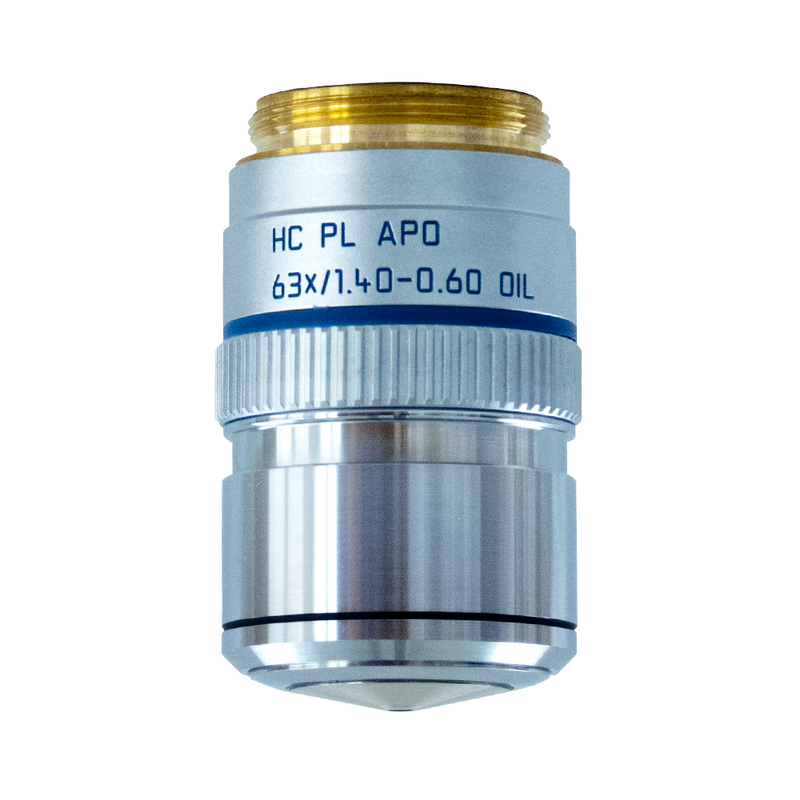

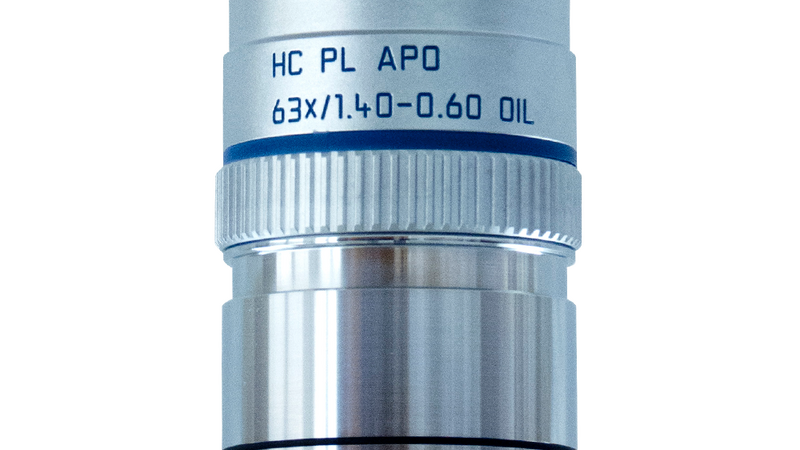

Microscope Objective HC PL APO 63x/1,40-0,60 OIL
Product No. 11506349
Objective HC PL APO 63x/1,40-0,60 OIL has a magnification of 63X and a numerical aperture of 1.4mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
技术规格
| 商品号 | 11506349 |
|---|---|
| 校正环 (CORR) | - |
| 盖玻片 | 使用 |
| 出射光瞳位置/微分干涉棱镜 | E |
| Field Number (FN) | 25 |
| 自由工作距离（WD，mm） | 0.14 |
| 浸渍 | 油 |
| 可变光阑 | 0.6 |
| 放大倍数 | 63⨉ |
| 相衬方法 | TL-BF, TL-DIC, FLUO |
| 数值孔径 | 1.4 |
| 物镜螺纹 | M25 |
| 物镜类型 | PLAN APO |
| 弹簧式 | 是 |
| 适用于 AFC（自适应焦点控制） | 适用于 AFC |
| 技术 | |

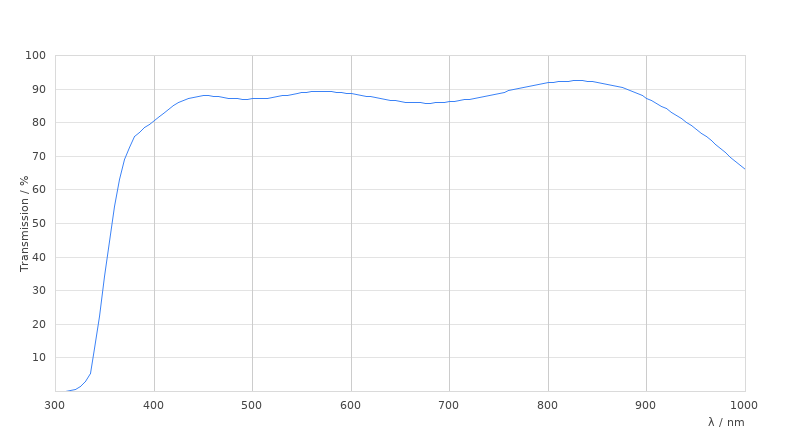

| 透射 | UV (340nm) |
