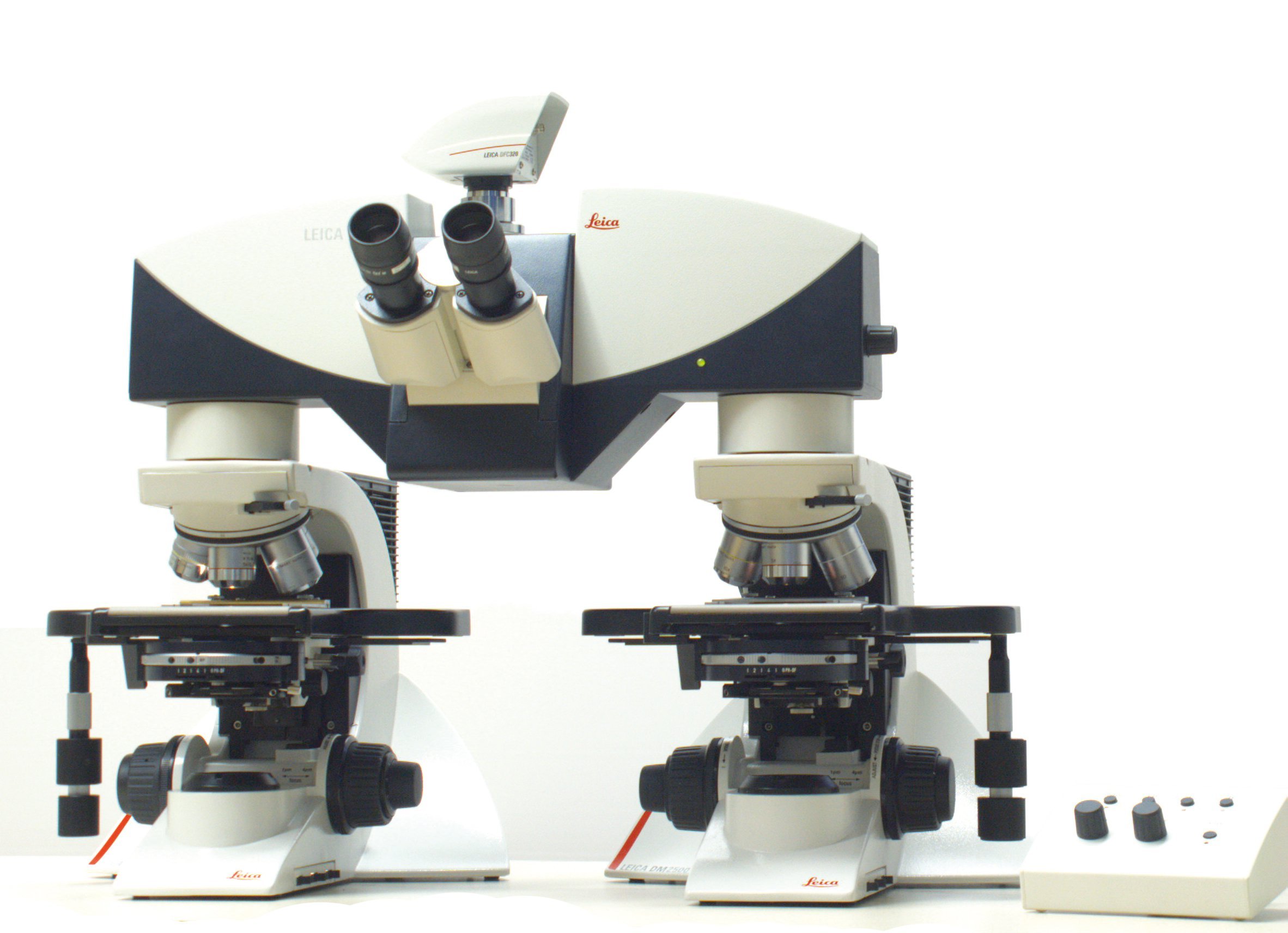

徕卡FS CB高倍显微镜 Leica FS CB

徕卡FS CB 由两台徕卡 DM 系列高倍显微镜 通过自动比对桥连接而成。

配置了内置人机工程学观察镜筒的比对桥可以进行最舒适的观察。不同的图像模式(分离图像, 叠加图像以及组合图像) 都可通过单一按钮的操作来实现。

徕卡FS CB是一台理想化的对两个放大倍数高达1500倍的精密图像可以进行一对一比对的显微镜。

The connection unit

… for high magnification, manual, encoded, and automated microscopes

With the Leica FS CB you are well equipped for many cases with a wide range of contrast and illumination methods at your disposal. Rely on an unparalleled level of comparison accuracy for your trace evidence samples. The FS CB comparison bridge fulfills many requirements for unambiguous identification.

Advantages

  • Details, such as the matting and finish of fibers, can be clearly recognized
  • Allows the use of many illumination and contrasting methods for the comparison of microscopic features
  • Provides optimal light and color control
  • The control panel permits easy management of the motorized bridge at all times

Compare, Examine, and Document Your Findings Accurately and Comfortably

For high accuracy, Leica comparison microscope solutions allow a simultaneous view of both objects in split-image and superimposed mode. A fast and easy comparison of evidence is possible thanks to the optimized bridge technology.

  • The bridge allows simultaneous observation with three observation modes: Side by side, left or right side, and superimposed with adjustable dividing line
  •  With 0.1% magnification accuracy you can have confidence in the results when comparing left side and right side images


Do you need a Research class Comparison Microscope?

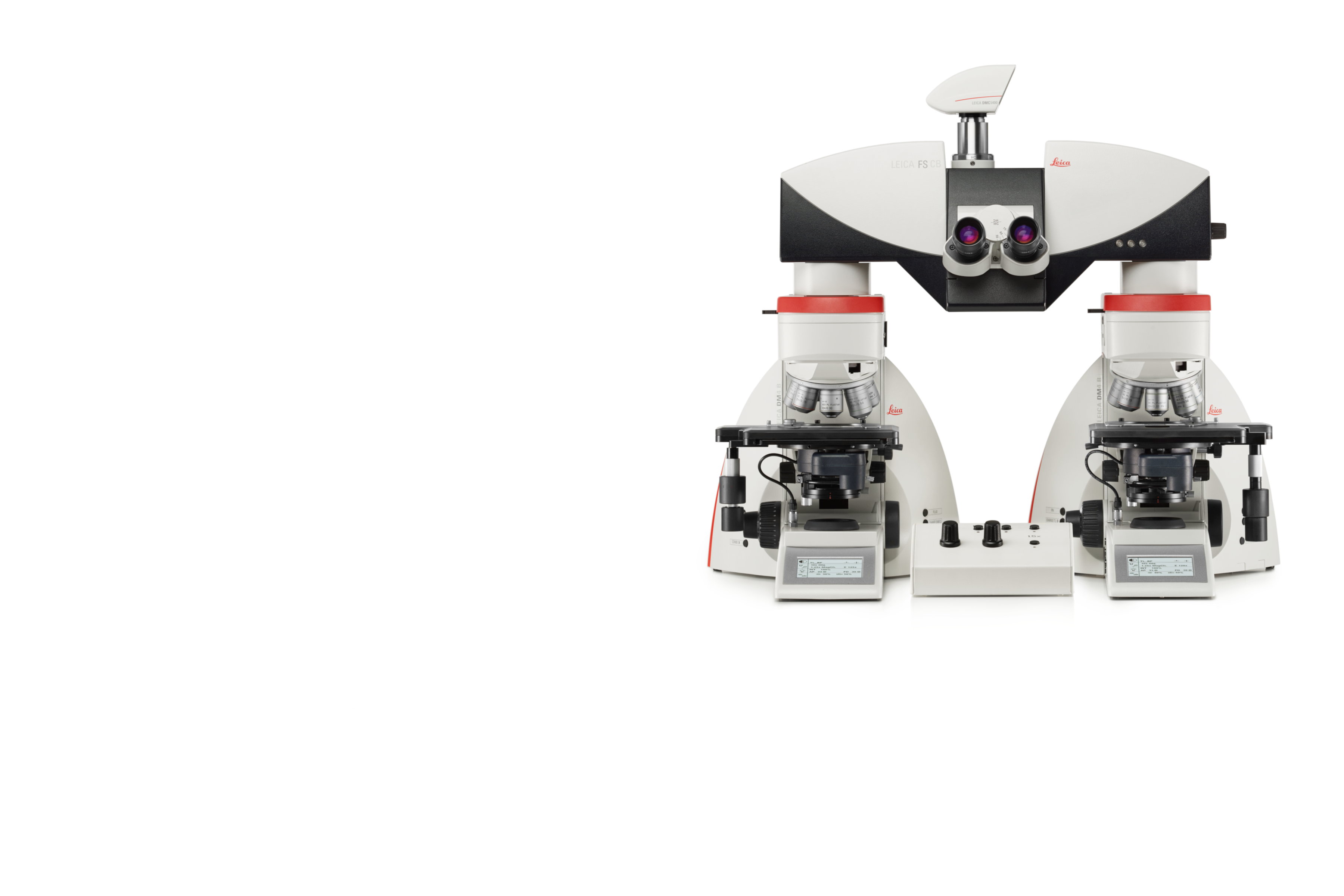

FS CB comparison bridge with DM4 LED microscopes

  • Rotatable mechanical stages for one or two slides or rotatable polarization stages.
  • Fully automated condensers.
  • Graphical display provides information on the aperture (AP) - and field diaphragm (FD) and light intensity.
  • The six buttons in the rear side plates of the microscopes are freely programmable.
  • 6-fold objective turret and 5-position fluorescence axis

Do you need a Routine class Comparison Microscope?

FS CB comparison bridge with DM2500 microscopes

  • Extra bright LED or 100 W Halogen illumination.
  • Unique, height-adjustable focus knobs.
  • 5 focus functions: 2- or 3-gear focusing, focus-stop, adjustable torque.
  • Special condenser for differential interference contrast (DIC).
  • 6- or 7-fold objective turret.
  • 5-position fluorescence axis

Your further options

For long working hours

  • Tiltable viewing tube
  • Ergonomic worktable

For imaging & documentation

  • Selection of digital cameras
  • Modular software for your specific needs

The right illumination for many samples

  • Coaxial illumination
  • External light source for fluorescence illumination

For easier comparison

  • Large choice of sample holders
  • Stage accessories
