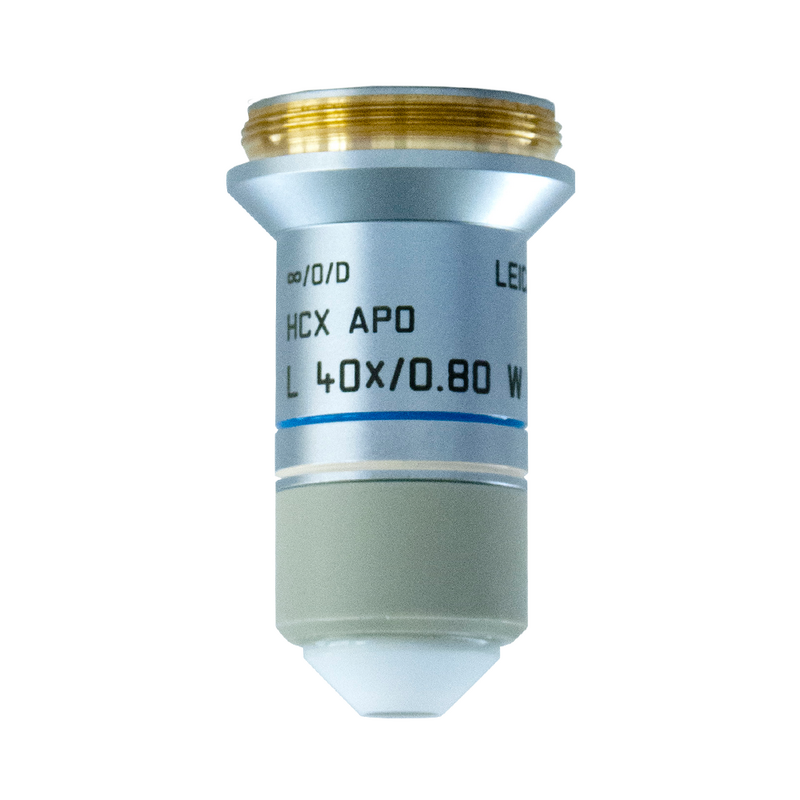

Microscope Objective HC APO L 40x/0,80 W U-V-I
Product No. 11506155
Objective HC APO L 40x/0,80 W U-V-I has a magnification of 40X and a numerical aperture of 0.8mm. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 3.3mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
技术规格
| 商品号 | 11506155 |
|---|---|
| 校正环 (CORR) | - |
| 盖玻片 | 不使用 |
| 出射光瞳位置/微分干涉棱镜 | D |
| Field Number (FN) | 22 |
| 自由工作距离（WD，mm） | 03. Mrz |
| 浸渍 | 水 |
| 可变光阑 | 不使用 |
| 放大倍数 | 40⨉ |
| 相衬方法 | TL-BF, TL-DIC, FLUO |
| 数值孔径 | 0.8 |
| 物镜螺纹 | M25 |
| 物镜类型 | APO |
| 弹簧式 | 否 |
| 适用于 AFC（自适应焦点控制） | - |
| 技术 | Electrophysiology, MP |

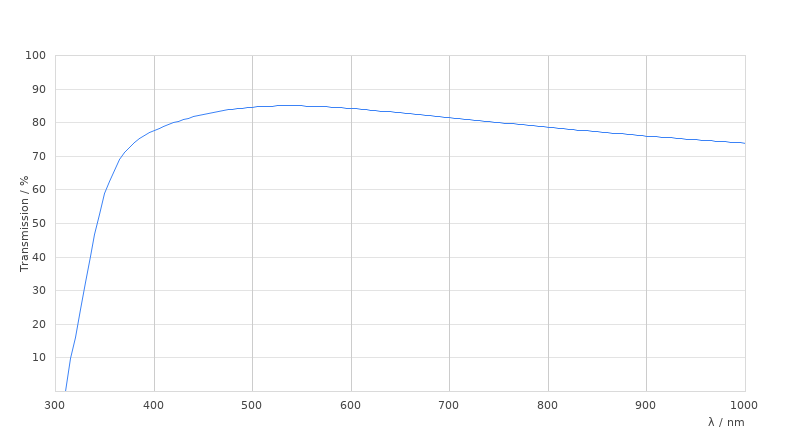

| 透射 | UV (340nm) |
