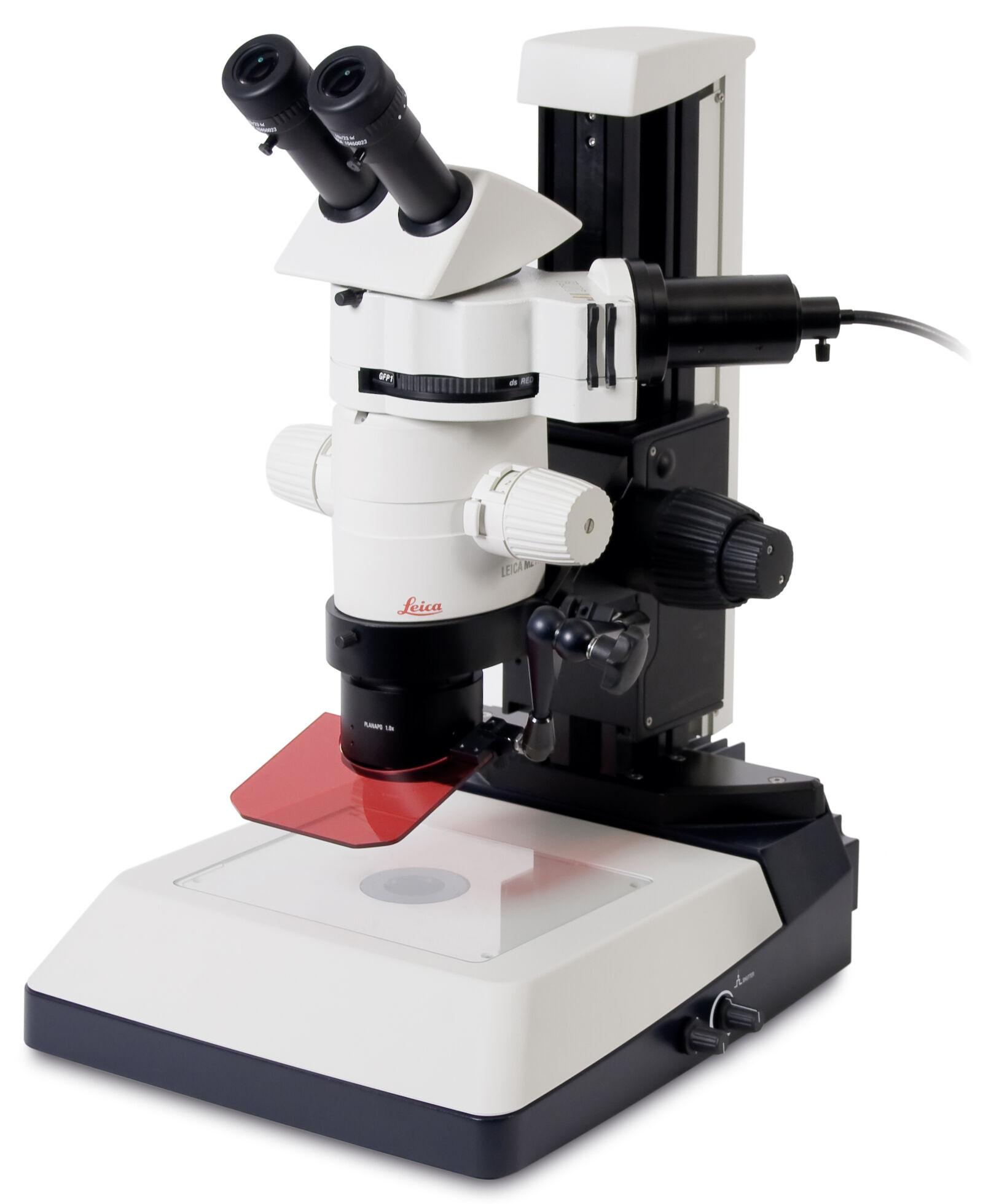

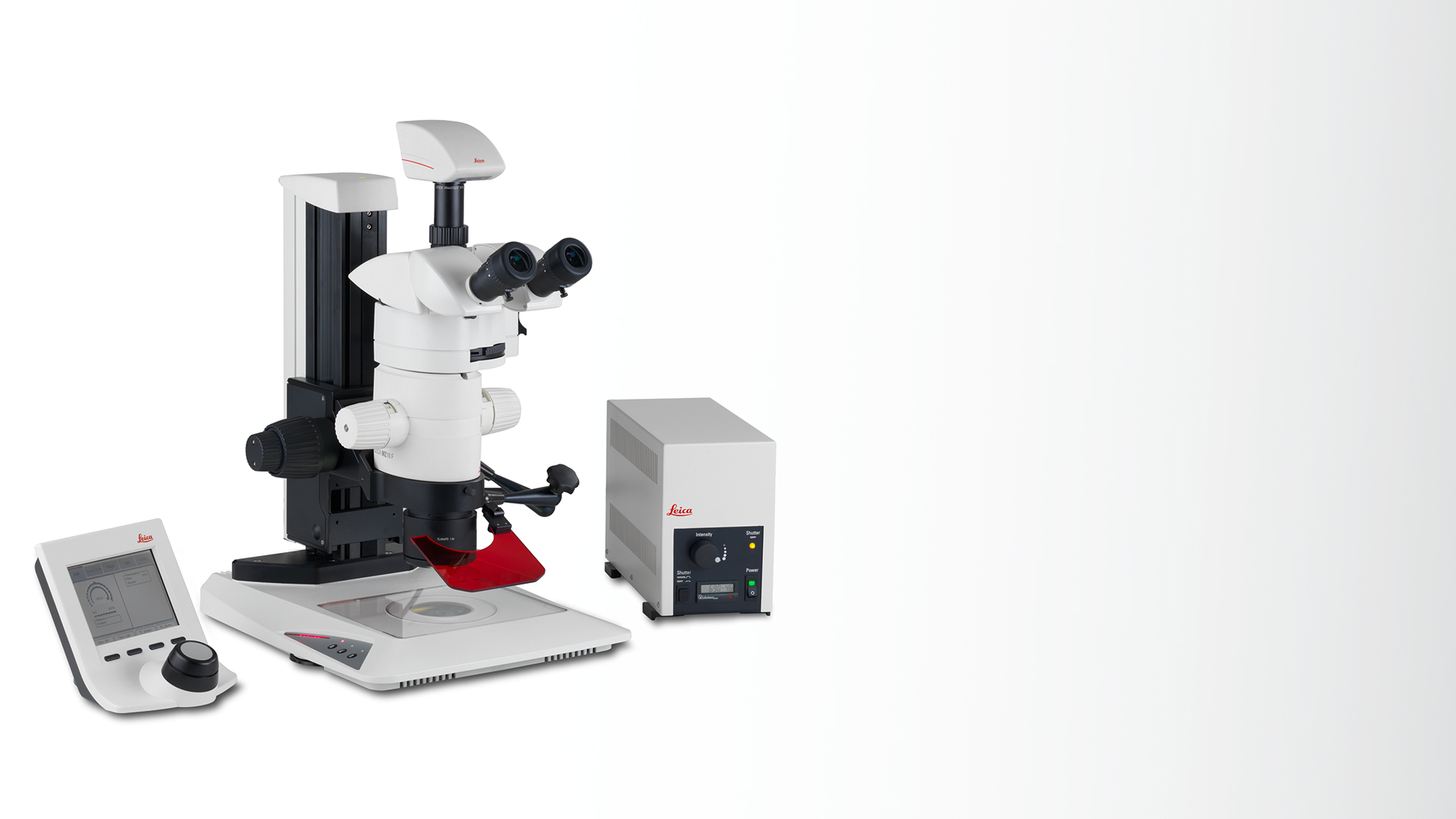

MZ10 F 荧光成像的模块化体视显微镜
Leica MZ10 F模块化体视显微镜,放大倍率为8倍至80倍,375Lp/mm的高分辨率,提供了三束技术,其专门针对高对比度和细节荧光成像的荧光照明指定单独的光束路径。
具备了FluoIII快速滤色镜转换器,这使得三束标准或自定义滤色镜套件之间进行快速互换,Leica MZ10 F对于荧光应用是理想的工具,如基因表达研究或发育生物学应用。
徕卡 MZ10 F 体视显微镜采用 TripleBeam™ 专利技术,可用于常规立体荧光成像
突出特点
- 10:1 zoom range with high numerical aperture of 0.125 for excellent representation of small structures.
- 8倍- 80倍放大倍率标准变焦镜头 - 日常分拣任务的理想选择,便于从概览到细节的观察。
- TripleBeam ™ 技术 单独的光路专门用于荧光照明,提供了高品质的对比度和细节荧光成像。
- 快速转换: Fluo III快速滤色镜转换器 - 允许在4种不同的滤色镜套件之间的进行快速交换以进行简单方便的成像。
- 三束滤色镜套件 - 各种适用于特定荧光应用的标准和自定义的滤色镜。
- Comprehensive user protection against UV radiation.
- Innovative contrast possibilities with Leica’s high-performance transmitted light bases.
Fluorescence Technology for Routine Use
The Leica MZ10 F fluorescence microscope supports researchers while viewing, sorting and selecting fluorescent specimens in the laboratory. With its excellent image contrast, 8× to 80× magnification, modular design and M-series accessories, the Leica MZ10 F fulfills all laboratory requirements with regard to fluorescence.
The 10:1 zoom range and high magnification, spanning from 8× to 80×, make this stereomicroscope the correct choice for quick sorting and screening tasks. The high resolution of 375Lp/ mm and 0.125 numerical aperture (1.0× PlanAPO) provide the possibility to view smallstructures clearly and precisely. Combined with a large choice of illumination systems, main objectives, and ergonomic accessories, the Leica MZ10 F is the ideal solution for routine fluorescence use.
The outstanding feature of the Leica MZ10 F: TripleBeam™, Leica’s patented third beam path. This separate fluorescence illuminator ensures that light at all zoom positions is accurately guided through the correct path to ensure a dark background within the field of view. The high signal-to-noise ratio results in best-in-class contrast and high-quality fluorescence images that are rich in detail and reflex- free, with jet black backgrounds.
UV Protection

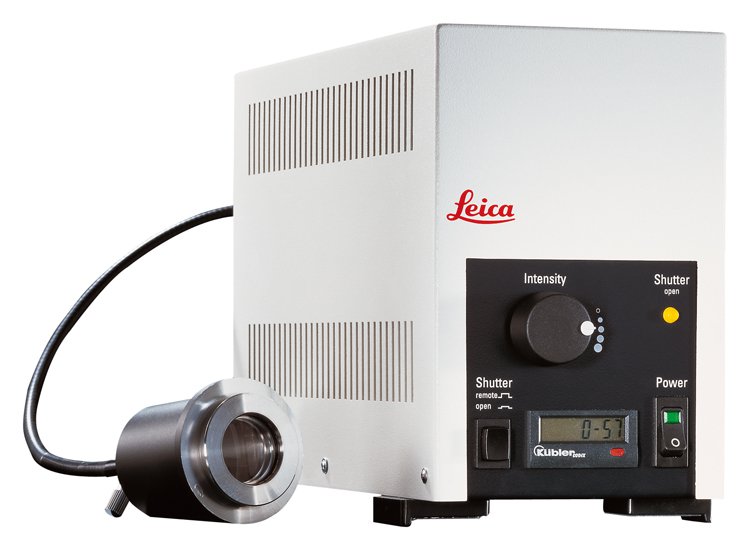

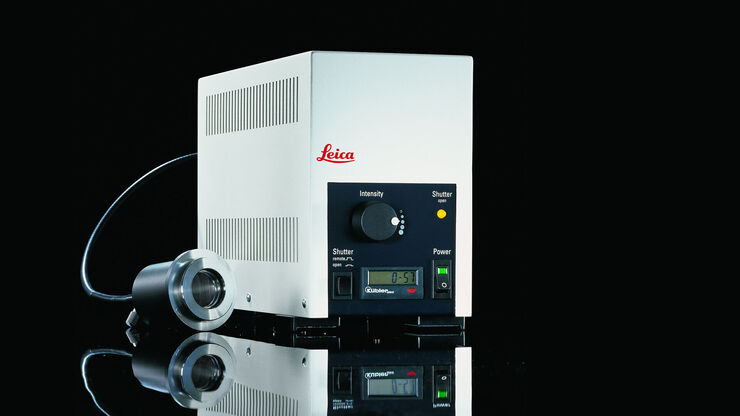

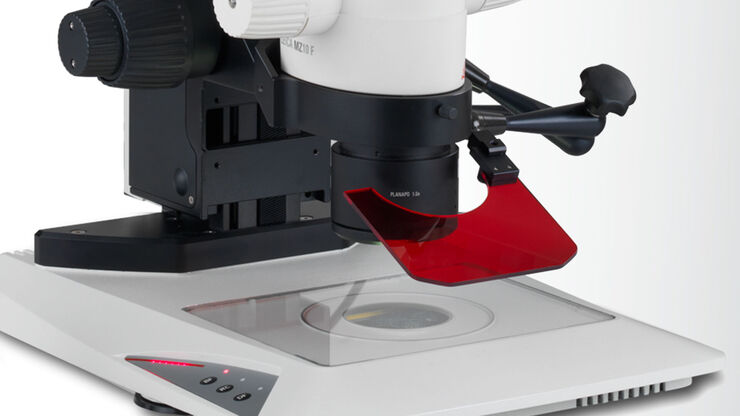

The substantial Leica UV precautions protect the user from damage through UV radiation. UV barrier filters are permanently installed in the observation beam paths. In addition, a UV protection screen above the specimen plane, a stray-light protection at the mercury lamp housing, and blank filter cartridges are installed in the empty filter positions.
Accessories to Enhance Your Daily Work
Leica’s comprehensive range of accessories provides a solution for every research requirement. The convenient observation of specimens is supported by the motorized focusing, high-performance transmitted-light stands and a variety of tubes and ergonomic accessories. The Leica MATS thermocontrol stage allows for observation of living samples in a controlled environment.
Intelligent Automation for Digital Fluorescence

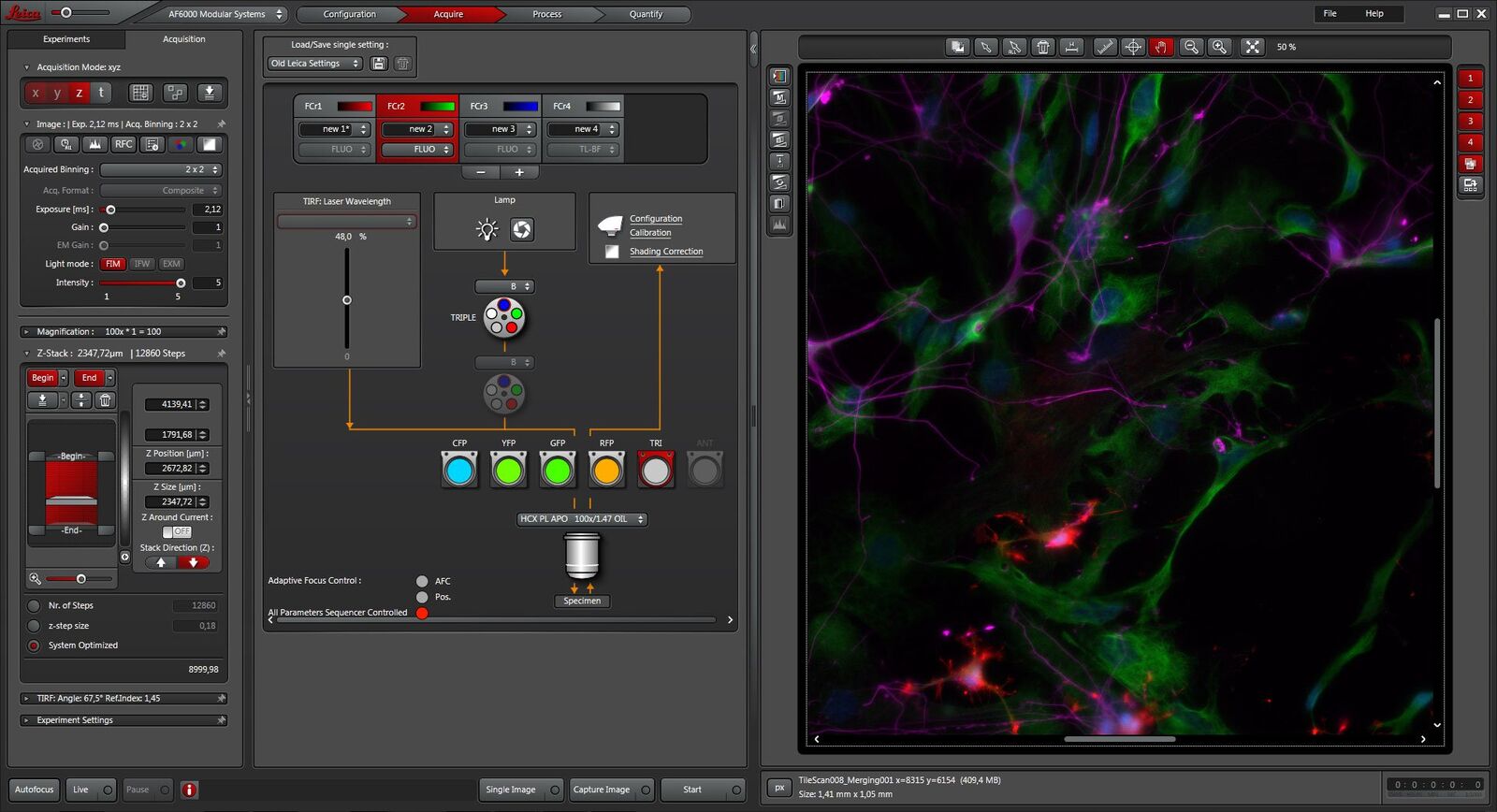

For documentation of research results, Leica Microsystems provides a choice of powerful digital cameras. The Leica Application Suite (LAS) offers a multitude of options for automated image acquisition, analysis, measurement and comparative observation of images., processing, assembly, presentation, and sequencing. Efficiency in daily laboratory work is granted by the database modules of the LAS software. With a variety of modules available, LAS offers perfect results for multiple fluorescence recordings in cell biology, genetics, botany, and pharmacology.
